Overhead Guard

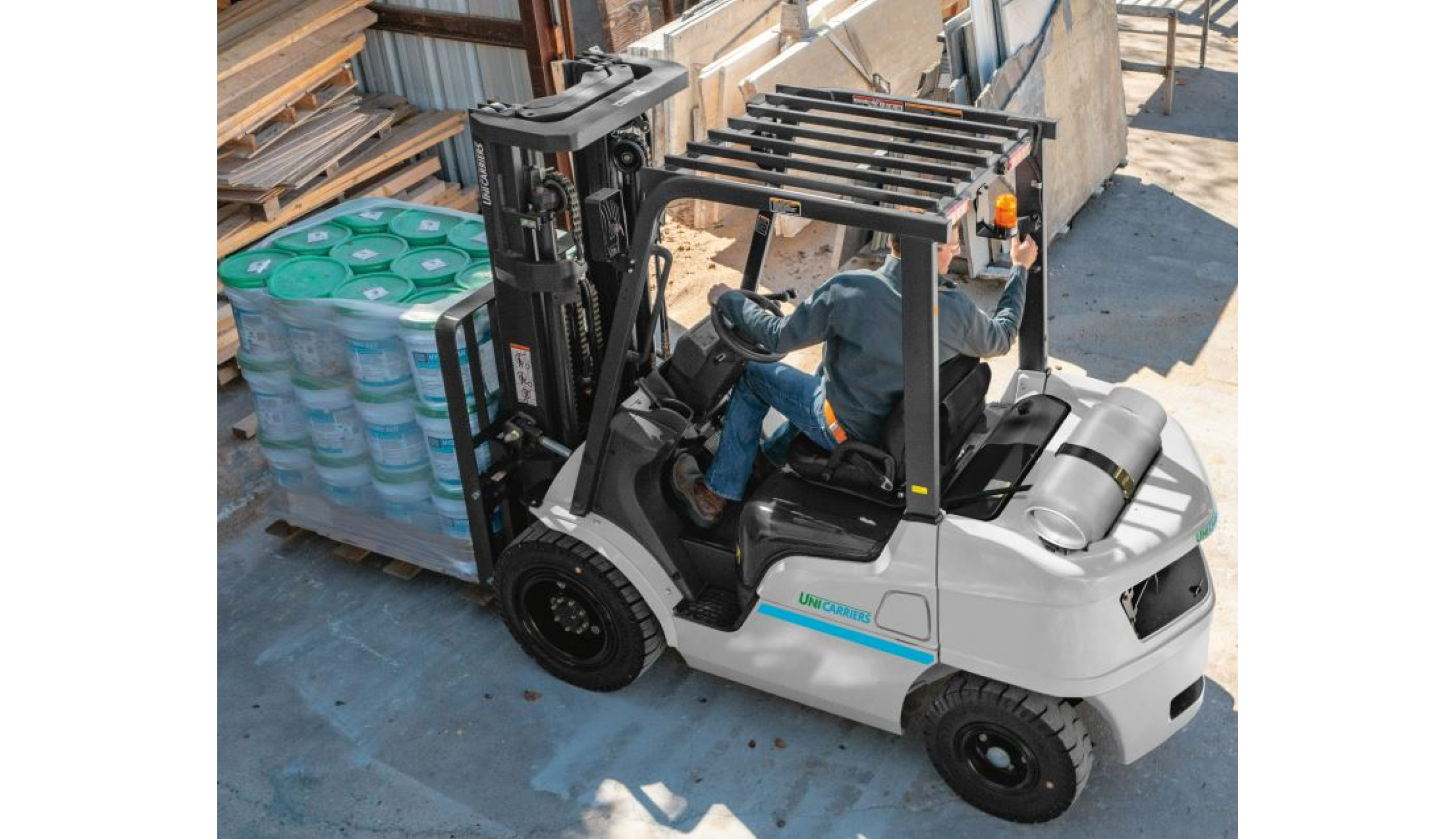

The overhead guard of the truck is designed using the FEA (Finite Element Analysis) software, which helps to ensure that the stress points on the overhead guard are kept to a minimum.
The front support members were designed with a specific channel shape providing rigidity while helping provide overall excellent visibility. For the same reasons,
the top does not use any horizontal stability bars but instead vertical bars giving the operator full view when looking up.
The overhead guard is constructed using a welded one-piece design.

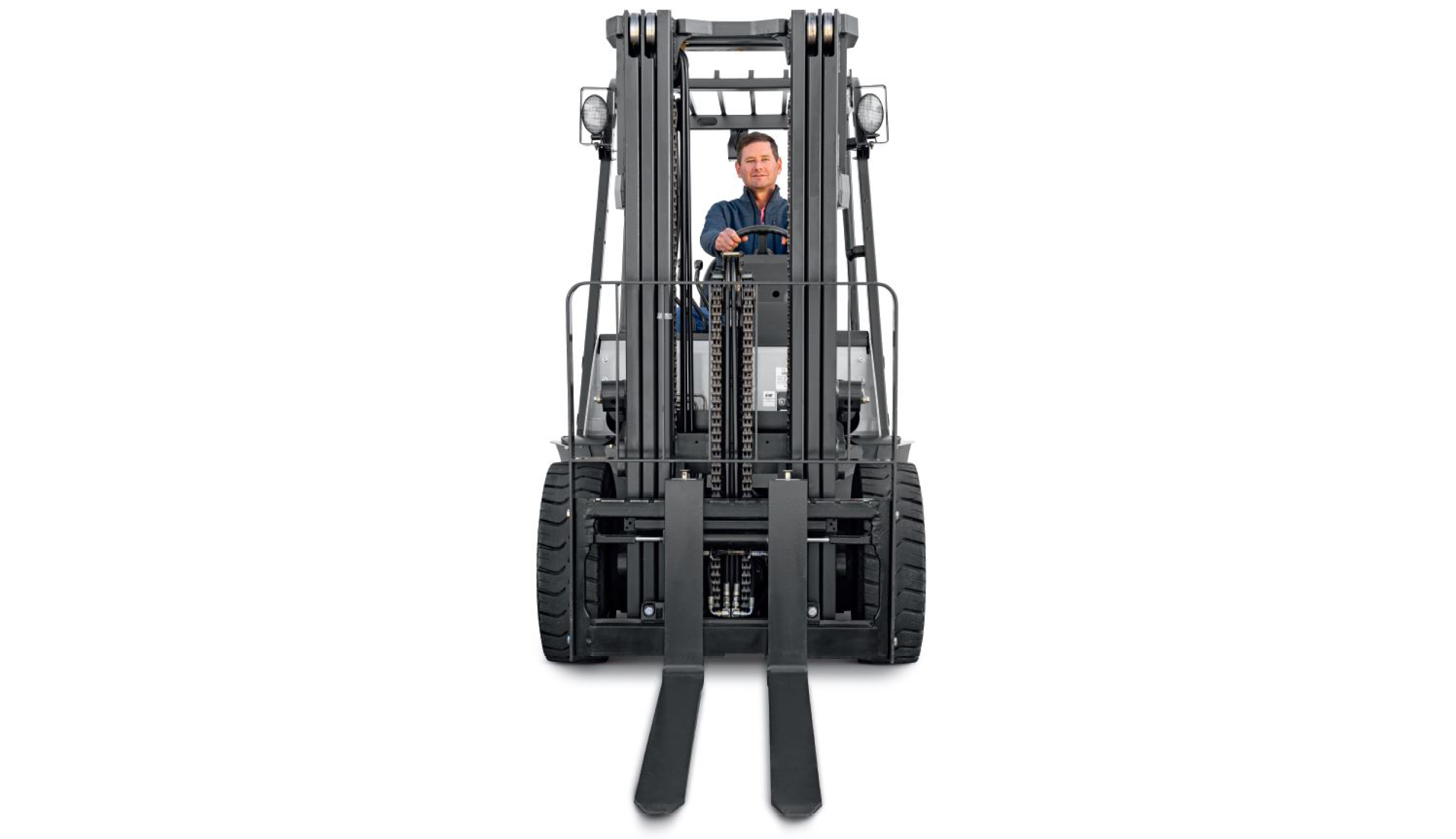

Mast
Narrow mast channels provide a large window of vision for the
operator while seated in the normal operating position.
The 3° canted rollers provide stability of the load on these narrower mast
channels.
The cross members of the truck are designed to make sure that the operator has good
visibility through the mast.
The carriage is designed with square fork bars instead of rectangular ones providing
more space, and therefore, more visibility between the bars.

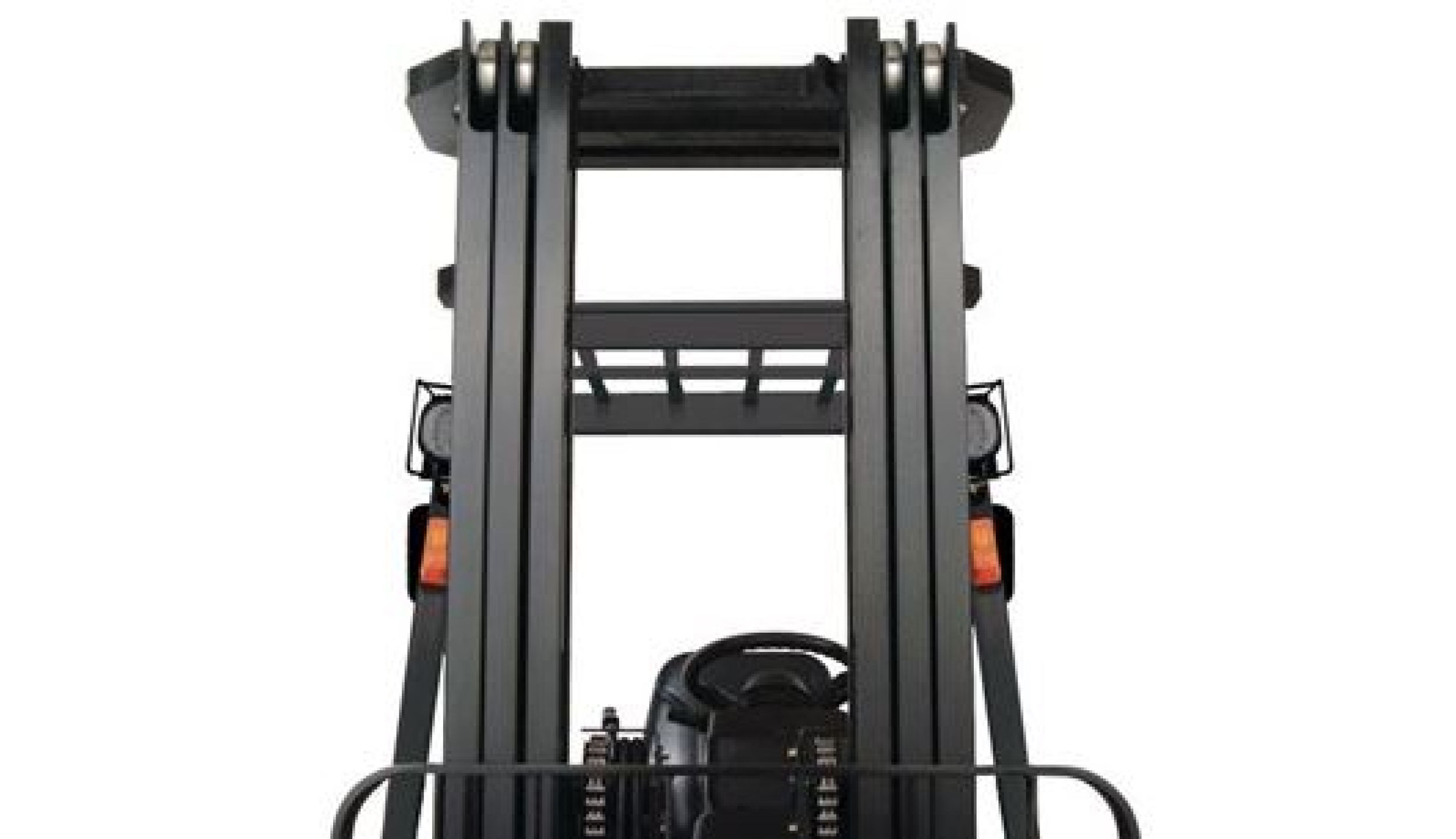

OptiView© Mast - Option
This optional mast features unique design elements that provides excellent
forward visibility:
- Triplex mast without central free lift cylinder
- Cylinders are located inside of inner mast rail
- Operator viewing area increased
- Provides enhanced load handling efficiency
- Integral mounted design available for capacity retention

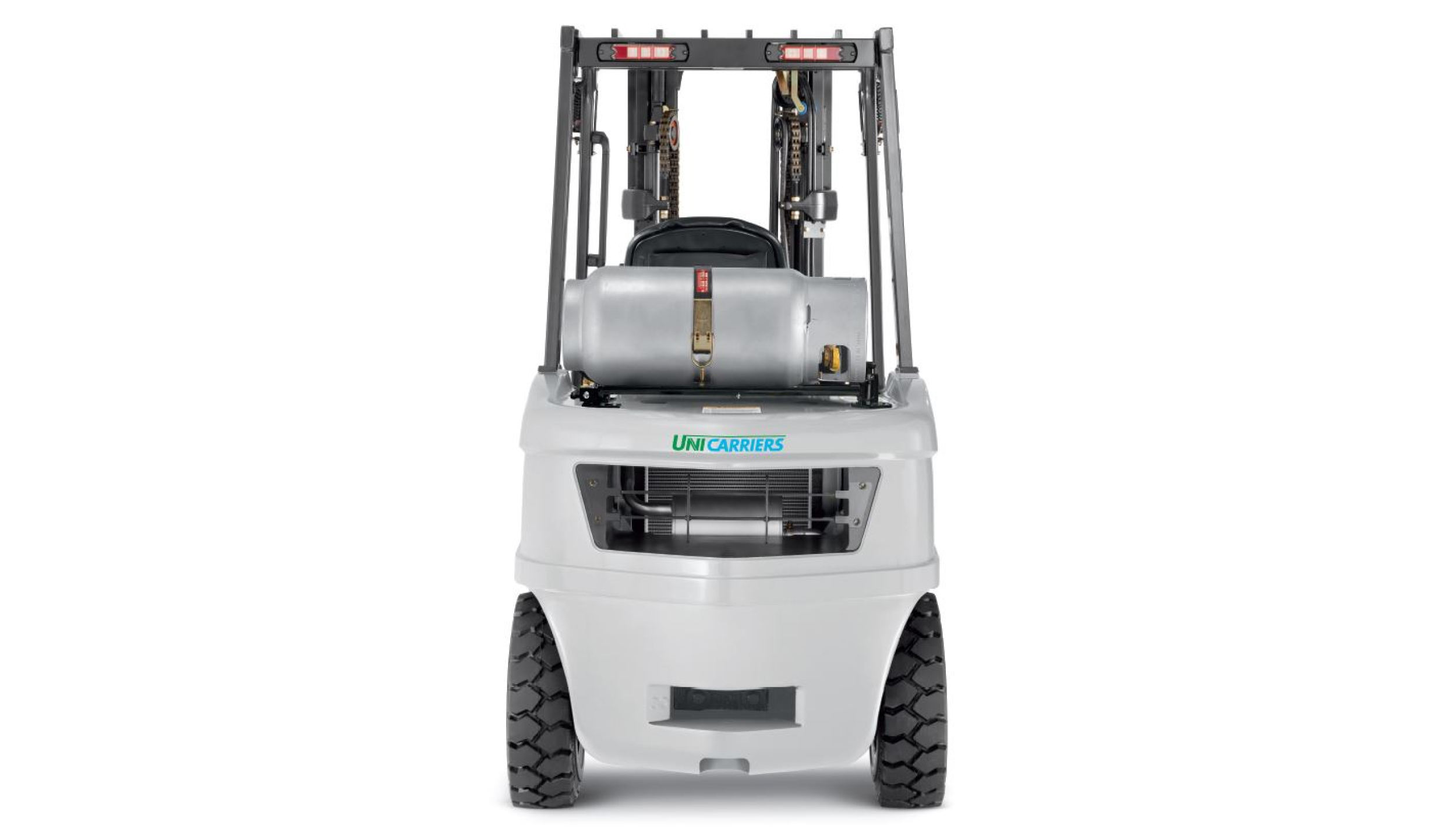

Low Profile Counterweight
The design provides for an improved turning radius while maintaining maximum residual capacity due to strategic weight positioning.
Provides housing for the muffler and radiator while providing airflow to the cooling system, which is critical in high-shuttle, dusty, or dirty applications.
Low profile shape allows for good visibility behind the truck from the operator compartment.
