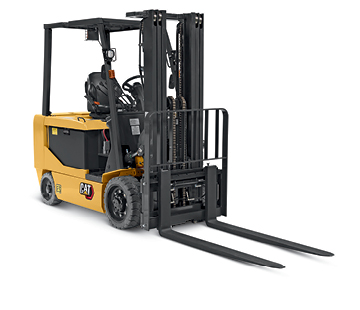

Cat EC40N

8,000 Lb. Capacity ELECTRIC CUSHION TIRE LIFT TRUCKS

The EC40N cushion tire lift truck combines the latest in operator ergonomics and advanced AC technology giving your operators the tools they need to drive your business forward.

The 8,000 lb. capacity electric cushion tire lift truck features an advanced 100% AC motor and hydraulic system to balance performance with efficiency. AC drive technology combined with the operator’s ability to choose from four different preset performance modes allow for high levels of productivity.

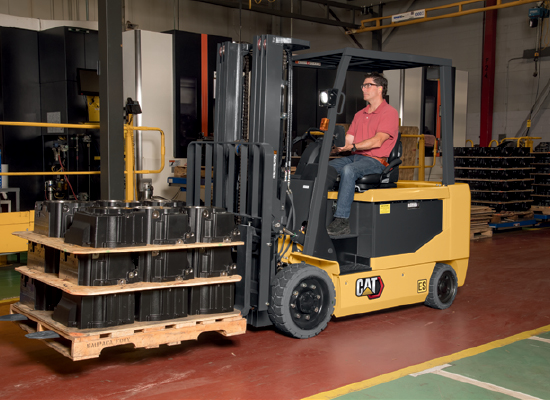

Productivity

Exceptional Run Times – Work longer with up to two shifts on one battery charge without sacrificing performance, thanks to Cat Lift Trucks 3-phase AC technology and regenerative braking.

  • Advanced drive system – no brushes or commutator
  • All AC hydraulic system
  • Enhanced electric power steering

Adaptable Performance Modes – Optimize your performance and efficiency by simply selecting one of the pre-set operating modes. Profits are maximized by achieving the right balance between output and economy.

EC23N-EC30LN

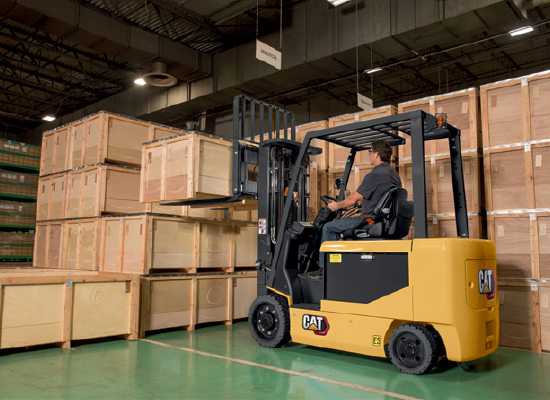

Awareness

Operator Presence Detection System – This integrated, computer-based feedback system uses both audible and visual indicators to alert the operator to potentially hazardous situations, while increasing operator awareness.

Highly-Visible Orange Seat Belt – Helps to clearly see when the operators are wearing their seat belt.

Cat EC40N

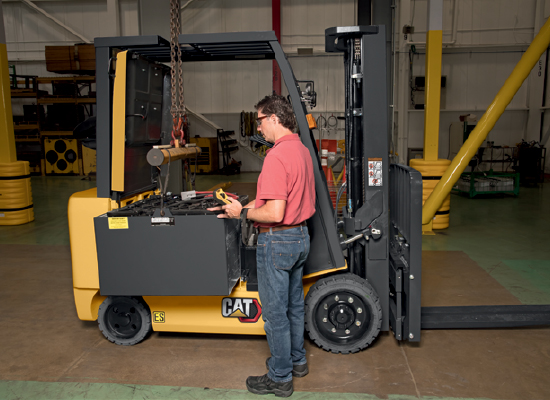

Energy Efficiency

Regenerative Braking – Activated when the lift truck decelerates, changes directions, or service brakes are applied, this feature helps to return energy to the battery. The result is extended run times and extended service brake life.

  • Improves battery life
  • Reduces brake wear
  • Minimizes heat build up

Two-Stage Hydraulic System – Allows these cushion tire lift trucks to provide precise load handling, fast lift speeds and less energy consumption.

Cat EC40N

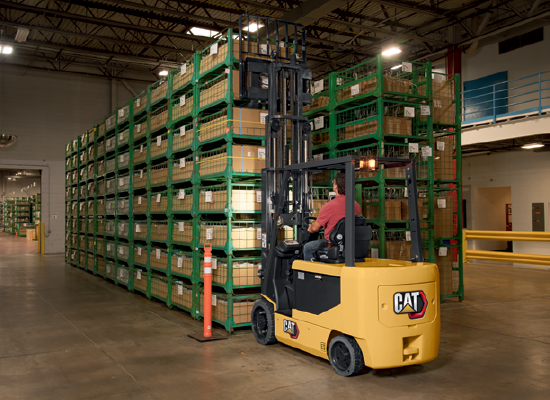

Ergonomics

Adjustable Full-Suspension Seat – The full-suspension, standard vinyl seat can be adjusted to give the operator the most comfortable position possible:

  • Front and back
  • Lumbar support
  • Suspension

Narrow Steering Column
  • Easy to operate
  • Tilt-adjustable
  • Full-hydrostatic steering

Cat EC40N

Model Basic Capacity (lbls) Max Fork Height Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in) Gross Weight (lbls)
EC40N 8,000 138 36/48 100.2 43.3 87.4 12,380

Product Brochure - English

EC40N Electric Cushion Tire Lift Truck
