EKX 514/516k/516 High-Rack Turret Truck / Order Picker (Man-Up)
< Back
< Back
3,000 - 3,500 lb. Capacity Electric Turret Truck
The EKX 514/516k/516 man-up turret trucks deliver unparalleled productivity and efficiency, raising the bar for operator assistance features and ergonomic standards.
Best used for narrow aisle warehouse applications, these 3,000-3,500 lb. capacity forklifts set new standards with regard to flexibility, low cost of operation and ergonomics. The EKX man-up turret trucks offer high performance and flexibility in high-rack warehouse applications. The Jungheinrich modular design system offers versatility and a variety of options to adapt the forklift to virtually any warehouse or logistics operation.

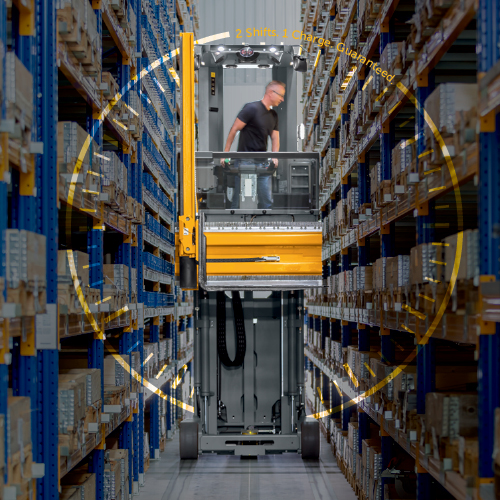

High Performance & Energy Efficiency
Industry-Leading Lift Speeds
- Achieve new levels of efficiency with lift speeds up to 118.1 ft/min.
Functionality
- Simultaneous functionality of main and auxiliary masts saves time for greater productivity.
Pioneers in AC Technology
- Since 1996, we've been leading the industry as the first OEM to adopt AC Technology.
High Performance 80Volt System
- The Jungheinrich® 80 volt, 3-phase AC motor and high-output AC controller deliver greater power and quick acceleration. It consumes less energy and yields high efficiency.
Innovative AC Motor
- Exclusive synchronous AC motor technology reduces energy losses and allows even longer operating times.

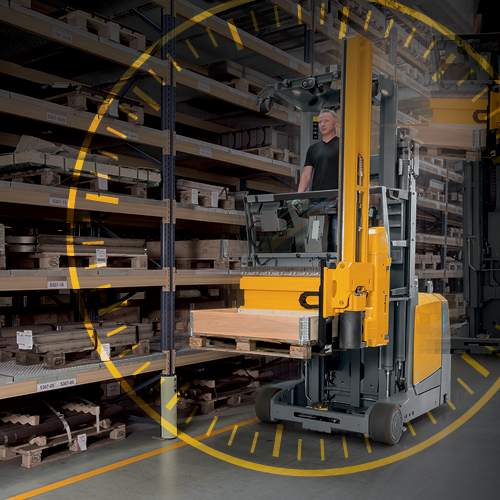

Industry Exclusive Support
5-Year Powertrain Warranty
- Industry’s only standard 5-year / 10,000 powertrain warranty – including parts and labor on all powertrain components.
Low Maintenance
- 1,000 hours service interval means more uptime with less time, effort and money spent on maintenance.

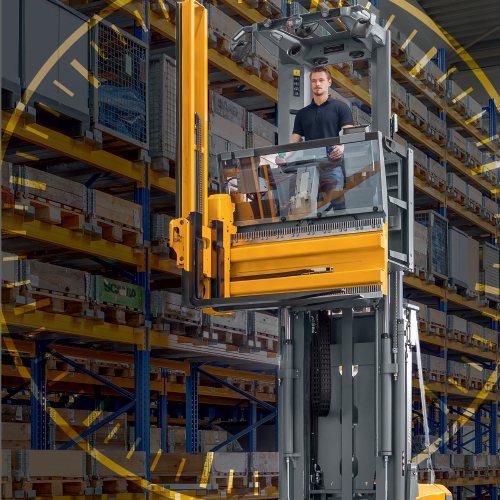

Operator Assistance & Protection
Object Detection System
- Select our optional integrated object detection system with a mobile detection feature using laser scanners to scan the work environment.
Maximize Capacity
- Benefit from our rigid mast design, maintaining industry-leading capacity retention for superior performance.
Operator Comfort
- Our front barrier and side gates are designed to securely enclose the operator within the compartment, prioritizing comfort and peace of mind during operation.

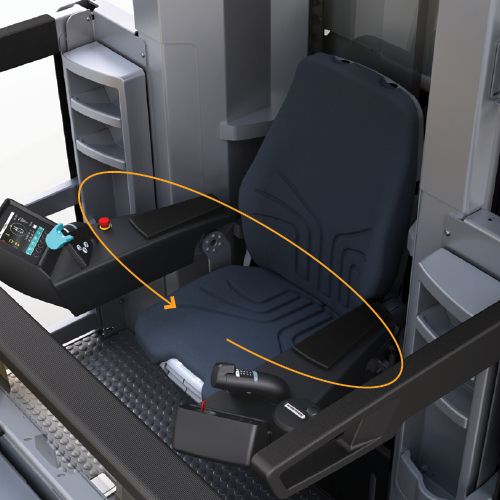

Ergonomics
Spacious Operator Compartment
- Enjoy ample space and storage options within the operator compartment. Our foldable seat and electrically adjustable control panel ensure comfort whether standing or seated.
Comfortable Support Features
- Experience comfort throughout your workday with padded knee supports, an adjustable console, and a full suspension adjustable seat equipped with a seat switch.
Intuitive Controls
- Navigate effortlessly with our multi-functional thumb-activated drive/hydraulic controls, designed for intuitive operation.
Performance Data
- Stay informed with ease using our large LCD color display, providing clear and comprehensive information at a glance.

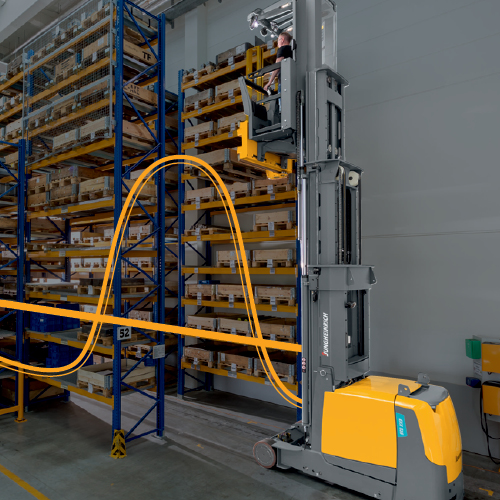

Warehouse Navigation and Performance Options
warehouseNAVIGATION System (Optional)
- Experience semi-automation with our optimized pinpoint location approach, enhancing accuracy.
- Achieve up to 25% higher throughput efficiency in the very narrow aisle warehouse.
- First OEM pioneers in the field since 2009, our expertise can help you streamline your warehouse operations.
Performance Package Options
- Choose from performance package options designed to navigate loads swiftly, covering the shortest distance while conserving energy.
Contact Our Specialists Today
Request your free 7-Day Demo Challenge* and see the impact to your business efficiency and productivity.
*The free 7-Day Demo Challenge is only available on Jungheinrich Class I and II products, subject to availability.
| Model | Basic Capacity (lbls) | Max Fork Height | Voltage (or Fuel Type) | Length to Fork Face | Chassis Width (in) | Chassis Height (in) | Gross Weight (lbls) |
| EKX 514 | 3,000 | 444 | 80 | 133 | 57.1 | 100.4 | 14,440 |
| EKX 516k | 3,500 | 483 | 80 | 137.4 | 57.1 | 100.4 | 15,146 |
| EKX 516 | 3,500 | 708 | 80 | 148 | 57.1 | 100.4 | 17,637 |
