EKX 410-412 High-Rack Turret Truck / Order Picker (Man-Up)
< Back
< Back
2,200-2,600 lb. Capacity Electric High-Rack Turret Truck And Order Picker
The EKX 410-412 sets new standards for man-up turret trucks in terms of flexibility, economic efficiency and ergonomics.
The 48-volt EKX 410-412 high-rack turret truck and order picker, with 2,200-2,600 lb. capacities, is designed for narrow aisle applications and can be used for full pallet put-away and retrieval as well as for picking individual boxes or pieces. With lift heights up to 30 feet, this turret truck sets new standards in terms of flexibility, efficiency and ergonomics. The new EKX 410-412 series is designed to operate longer, reach higher lift heights and maximize efficiency.

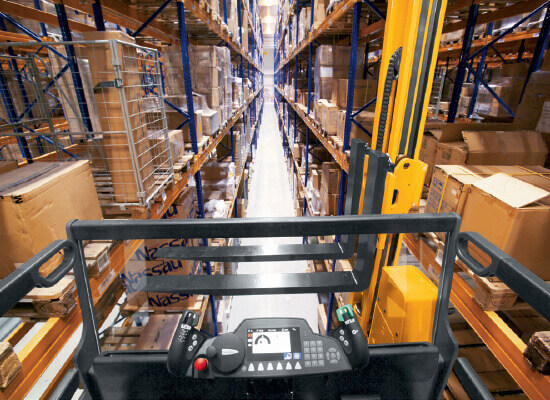

Productivity
The Jungheinrich® 48 volt, 3-phase AC motor and high-output AC controller deliver greater power and quick acceleration.
Simultaneous lift and lower of the main and auxiliary masts means the truck can reach the next location faster.
Higher residual capacities and optional Residual Capacity Plus increase operational and slotting flexibility.
Up to two shifts on one battery charge and up to 1,000 hour service intervals means your man-up turret truck stays on the job longer.
Optional Warehouse Navigation System optimizes truck movement and provides automatic vertical and horizontal truck positioning.

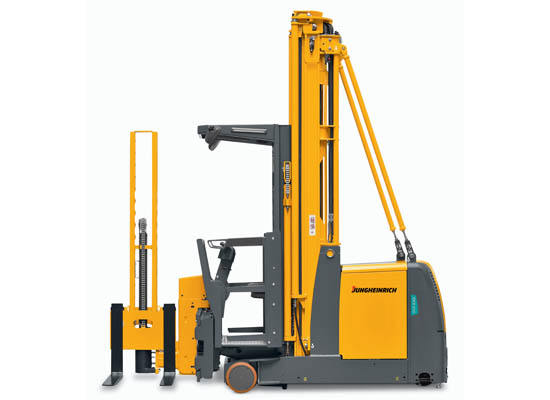

Awareness
Two-hand operation helps ensure the order picker operators keep their hands within the confines of the truck during operation.
The sturdy mast design and mast supports mean the mast will not sway at high heights.
Emergency lowering and descent brings the operator to the ground, should the truck become disabled while the mast is raised.
Optional Personnel Protection System senses the presence of pedestrians in working aisles and alerts the operator; slows and/or stops the truck as necessary.

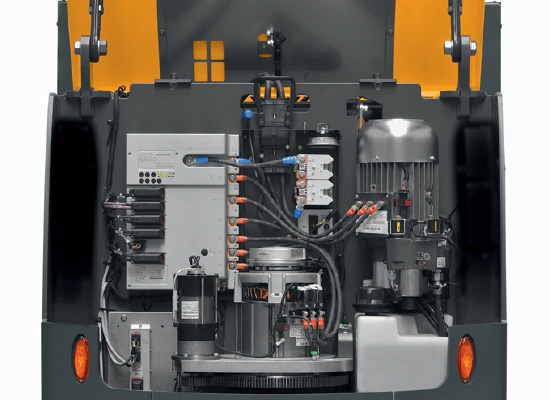

Energy Efficiency
Double benefit of energy regeneration – when braking and when lowering – and effective energy management.
Get up to two full shifts with one battery charge in a typical application.
80 volt electrical configuration consumes less energy and yields high efficiency.

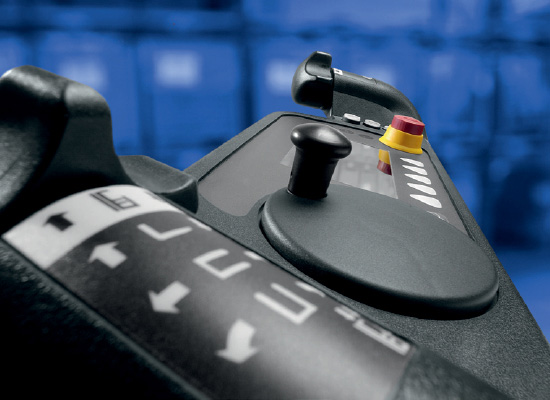

Ergonomics
The superior stability of these order pickers means virtually no mast sway at high lift heights lead to greater operator confidence.
Electrically-adjustable control panel puts the controls at the optimum position for each operator.
Cushioned, cloth seat folds up with comfortable padding underneath for optional standing position.
Height-adjustable knee supports along front barrier add comfort while order picking.

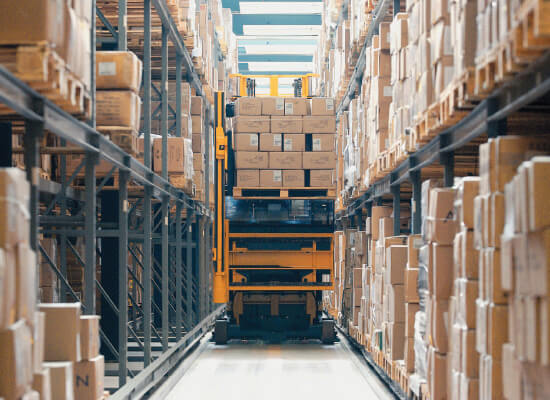

Total Cost Of Ownership
Sealed electrical components mean that dust and moisture will not impact the forklift's performance.
Industry leading service tool gives technicians quick access to all major truck functions and parameters.
Extended 1,000 hour service intervals means less maintenance and service is required.
Lithium-ion Package Advantages
- Fast charging with no need for battery exchanges
- Maintenance-free with no odors from gases or acidification
- Longer service life compared to lead-acid batteries
- Charging can be interrupted at anytime
- 5-year battery warranty included
Exclusive 5-Year Powertrain Warranty
Expect more from Jungheinrich, the experts in warehouse products, like a 5-year / 10,000 hour powertrain warranty that outperforms others. Available on all Jungheinrich Class I and II products sold across the United States, Canada and Mexico, the coverage includes parts and labor on all forklift components. Rest easier knowing that we’re here to help keep your fleet running – shift after shift – when you need it most.
Contact Our Specialists Today
Let us help you find the right solution to optimize your warehouse productivity.
| Model | Basic Capacity (lbls) | Max Fork Height | Voltage (or Fuel Type) | Length to Fork Face | Chassis Width (in) | Chassis Height (in) | Gross Weight (lbls) |
| EKX 410 | 2,200 | 295 | 48 | 132.6 | 57.1 | 100.4 | 13,007 |
| EKX 412 | 2,600 | 334 | 48 | 132.6 | 57.1 | 100.4 | 13,261 |
