GP15N-GP35N IC Pneumatic Tire Lift Trucks
< Back
< Back

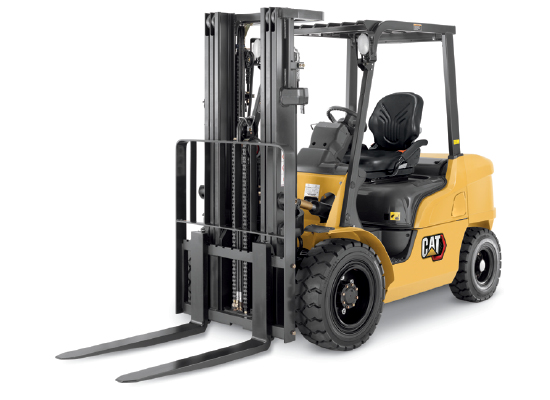

3,000 - 7,000 Lb. Capacity Internal Combustion Pneumatic Tire Lift Trucks
The GP15N-GP35N / DP20N-DP35N LP/gas and diesel forklifts have a lifting capacity of 3,000 – 7,000 lbs. and are built to work hard with a combination of dependable performance and rugged durability.
They are built to push through the hardest work days to help you move more – all day, every day – by offering dependable performance, rugged durability and world-class support from your local dealer. The DP20N-DP35N diesel models are designed with cutting edge emissions technologies to comply with EPA Tier 4 Final requirements.

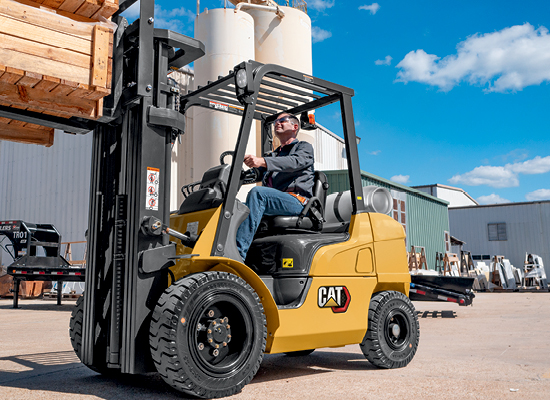

Productivity
EK21/EK25 LP Gas Engines – The enhanced performance of these engines provides reliable operation in the toughest conditions and the power needed to enhance productivity while meeting the emissions standards of the EPA.
4EG Diesel Tier 4 Final Engine – This EPA-compliant 3.3L four-cylinder engine is engineered to produce minimal emissions and provide the power to get the job done.
Fuel Saver Mode – Lowers overall fuel costs by up to 14% without affecting top speed.
Powershift Transmission – The transmission's torque converter is precisely matched to the engine to provide high levels of torque and a smooth ride.
LCD/LED Display – Operator can monitor all critical systems during operation to help reduce costs and the risk of excessive downtime.

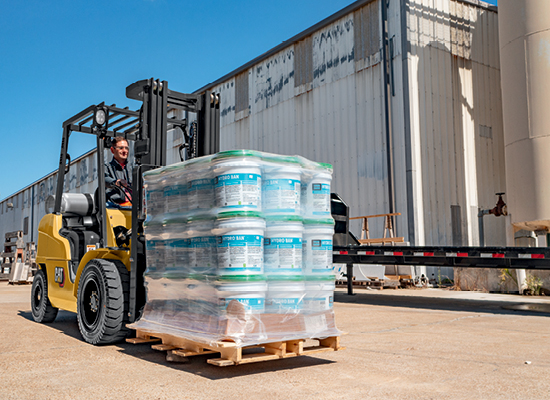

Durability
Engine Protection System – Monitors engine oil pressure along with transmission fluid and coolant temperatures to protect the system from damage. Operators are kept informed through the display if critical levels are reached.
Steel Frame – More steel in the frame means a more durable forklift.
Serviceability
Easy Access To Engine – Easily check major engine components through the forklift's rear-hinged engine hood. No tools required to open the lift truck's compartment, simplifying serving and maintenance.
Extended 500-Hour Service Intervals – Save time and money on routine preventative maintenance over the lift of the forklift.

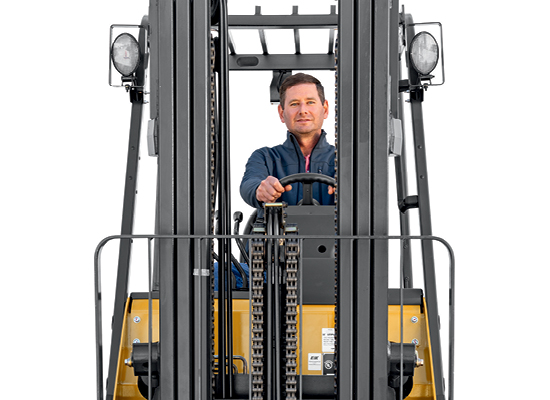

Awareness
Presence Detection System (PDS) – Activates when the operator does not fasten the seat belt during operation or leaves the normal operating position without activating the parking brake. Audible and visual indicators activates to increase the operator awareness.
Orange Anti-Cinch Seat Belt – The bright orange color can also be easily seen from a distance, making it easier to clearly see when operators are properly wearing their seat belt.
Forward LED Worklights – LED worklights burn longer and brighter as compared to traditional halogen or incandescent lights, resulting in significant maintenance savings over the long run. Lights are also covered under the standard warranty.

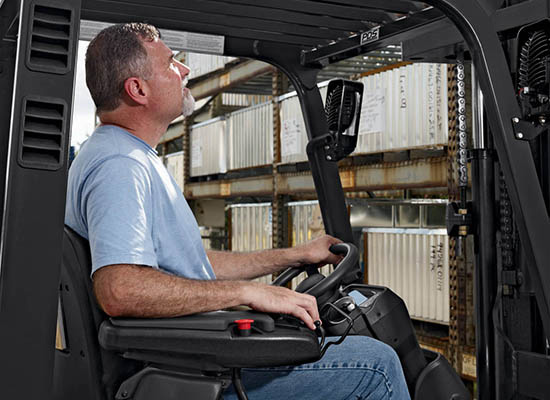

Operator Comfort
Standard Full-Suspension Vinyl Grammer® Seat – This seat helps reduce shock and vibration while optimizing comfort and productivity via 4-way adjustments, lumbar support, weight suspension and forward/backward adjustments.
Noise and Vibration Reduction – Updated cabin designs reduce vibration and noise for the lift truck operator, providing a more comfortable ride.
Fully-Hydrostatic Steering System – Allows for ease of steering and increased maneuverability when operating the forklift.
| Model | Basic Capacity (lbls) | Max Fork Height | Voltage (or Fuel Type) | Length to Fork Face | Chassis Width (in) | Chassis Height (in) | Gross Weight (lbls) |
| GP15N | 3,000 | 276 | Gas / LPG | 89.0 | 41.9 | 82.7 | 5,650 |
| GP18N | 3,500 | 276 | Gas / LPG | 90.4 | 41.9 | 82.7 | 6,070 |
| GP20CN | 4,000 | 276 | Gas / LPG | 92.5 | 41.9 | 82.7 | 6,750 |
| GP20N | 4,000 | 277 | Gas / LPG | 98.0 | 45.3 | 82.9 | 7,370 |
| DP20N | 4,000 | 276 | Diesel | 98.0 | 45.3 | 84.5 | 7,610 |
| GP25N | 5,000 | 277 | Gas / LPG | 100 | 45.3 | 82.9 | 7,990 |
| DP25N | 5,000 | 277 | Diesel | 100 | 45.3 | 82.9 | 8,210 |
| GP28N | 5,500 | 277 | Gas / LPG | 104 | 50.2 | 83.7 | 9,090 |
| DP28N | 5,500 | 277 | Diesel | 104 | 50.2 | 83.7 | 9,330 |
| GP30N | 6,000 | 277 | Gas / LPG | 107 | 50.2 | 83.7 | 9,400 |
| DP30N | 6,000 | 277 | Diesel | 107 | 50.2 | 83.7 | 9,640 |
| GP33N | 6,500 | 277 | Gas / LPG | 108 | 50.2 | 83.7 | 10,150 |
| DP33N | 6,500 | 277 | Diesel | 108 | 50.2 | 83.7 | 10,390 |
| GP35N | 7,000 | 277 | Gas / LPG | 110 | 50.8 | 84.3 | 10,340 |
| DP35N | 7,000 | 277 | Diesel | 110 | 50.8 | 84.3 | 10,590 |
