5,500 lb. Capacity Electric Powered Pallet Trucks
The ERE 125 / 225 / 225DP powered pallet truck is a great tool for loading and unloading, order picking or transporting loads across your warehouse.
The ERE powered pallet truck combines the maneuverability and comfort of a stand-on forklift in the compact design of a walkie end rider. A great tool for loading and unloading trailers, order picking inside the aisle or transporting 5,500-pound loads across your warehouse, the ERE 125 / 225 / 225DP can be individually adapted and customized to your specific application with the goal of moving goods faster and more efficiently.
Productivity
With four optional stand-on platforms, users can set the height of the platform and level of comfort to suit their specific requirements. This feature helps minimize operator fatigue over the entire shift.
With the touch of a button, the optional positionCONTROL function allows the forks to rise to a preset height, thereby optimizing lift time and minimizing adjustments while moving more efficiently.
The drivePLUS version, with its 3.2 kW drive motor, ensures quick acceleration and drive speeds up to 8.69 mph.
Awareness
2-inch color display with battery discharge indication, event message displays, speed display and three preset operator driving modes.

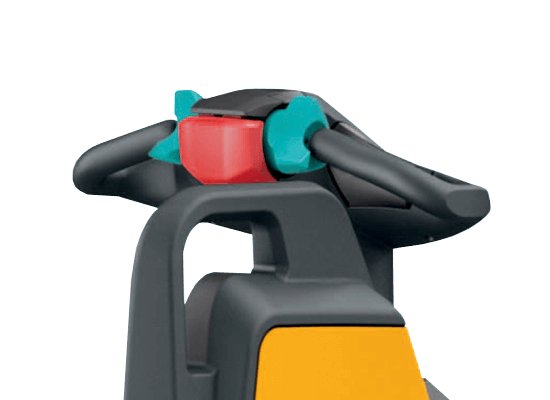

A newly developed, height-adjustable smartPILOT electric tiller head features color-coded buttons with abrasion resistant symbols for intuitive or tactile operation.
An electronic photo eye protection beam (optional) detects when the operator’s foot moves outside the vehicle compartment, significantly slowing travel speed.
Energy Efficiency

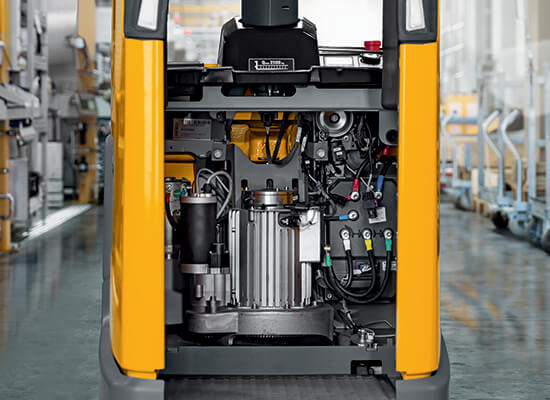

The powerful 3-phase AC motor and high-output AC controller allow these powered pallet trucks to deliver quick acceleration, smooth directional changes and optimum performance.
Progressive drive technology and control electronics (speedCONTROL) provide productive and energy-efficient operation with adjustments to fit most applications.
Energy is returned to the battery during speed reduction using regenerative braking.
Ergonomics
The ERE features shockPROTECT, a spring-loaded drive unit that cushions the operator, truck and load.
Innovative operator compartment with four platform options enhances productivity.
Innovative operator compartment with four platform options enhances productivity.
Total Cost Of Ownership
Activation of maximum travel speed only when forks are at a properly raised height provides a reliable reduction in wear under the forks.
Jungheinrich’s Parts Fast or Parts Free Guarantee ensures next-business-day delivery by 5:00 PM of all Jungheinrich parts in the United States, or they’re free, including freight. For customers in Canada and Mexico, the guarantee ensures shipping of parts within 24 hours from the time the order was placed by the dealer.
Contact Our Specialists Today
Let us help you find the right solution to optimize your warehouse productivity.
| Model | Basic Capacity (lbls) | Max Fork Height | Voltage (or Fuel Type) | Length to Fork Face | Chassis Width (in) | Chassis Height (in) | Gross Weight (lbls) |
| ERE 125 | 5,500 | 4.8 | 24 | 27.4 | 30.3 | 0 | 891 |
| ERE 225 | 5,500 | 4.8 | 24 | 27.4 | 30.3 | 0 | 891 |
| ERE 225DP | 5,500 | 4.8 | 24 | 27.4 | 30.3 | 0 | 891 |
