ETV 318, 320, 325 and ETM 325 Moving Mast Reach Truck
< Back
< Back
3,900 - 5,500 lb. Capacity Electric Sit-Down Moving Mast Reach Trucks
The ETV/ETM 3 series of moving mast reach trucks has a compact design for greater maneuverability.

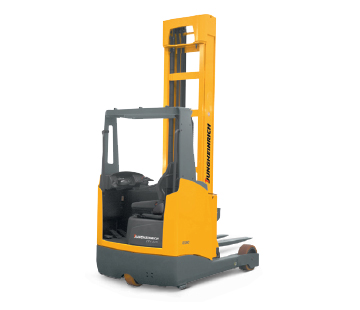

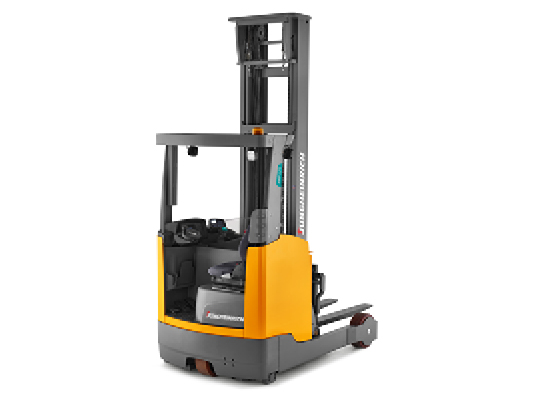

The ETV 318/320/325 and ETM 325 series of moving mast reach trucks offers the right solutions for a wide range of applications. These 3,900-5,500 lb. capacity reach trucks come equipped with premium ergonomics and standard features that help increase operator confidence and improve productivity.Productivity

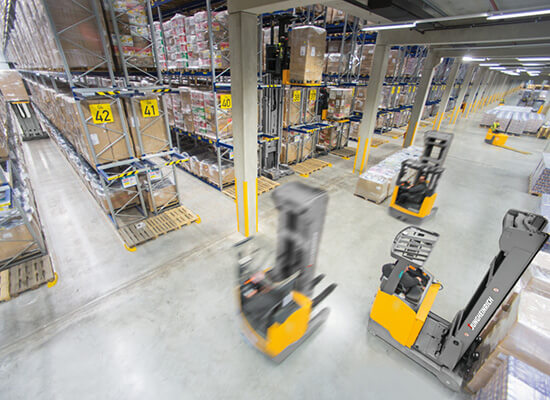

Featuring advanced 3-phase AC technology for superior drive, lift and steering, this Class 2 Moving Mast Reach Truck offers:
Maximum ease of handling with intuitive control of the hydraulic lever and travel direction switch.
SOLO-PILOT control lever to ensure precise control of the travel/lifting functions by fingertips alone.
Awareness
Patented mast-reach cushioning, with travel speed automatically reduced to crawl speed if the load is raised above the free-lift height.
Jungheinrich® Curve Control for advanced stability during cornering.
Truck performance software can be adjusted to meet your specific drive and hydraulic performance needs or limits.

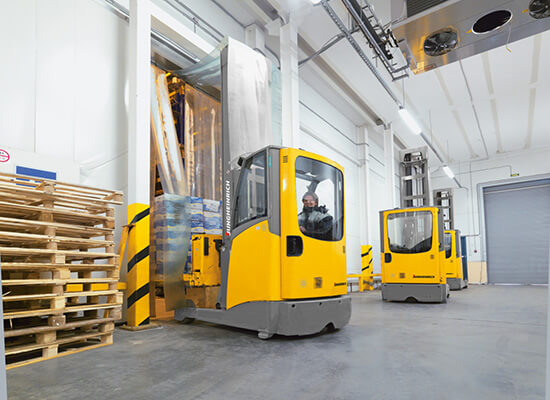

Energy Efficiency
Optional regenerative lowering feature reclaims electrical energy when lowering a load from higher heights.
AC Electric Power Steering provides improved energy efficiency.
Ergonomics
The reach truck's spacious operator compartment combines comfort and functionality to improve operator efficiency.
3-way adjustable full-suspension seat for maximum operator comfort.
Low-effort electric power steering for precise control with minimal effort.

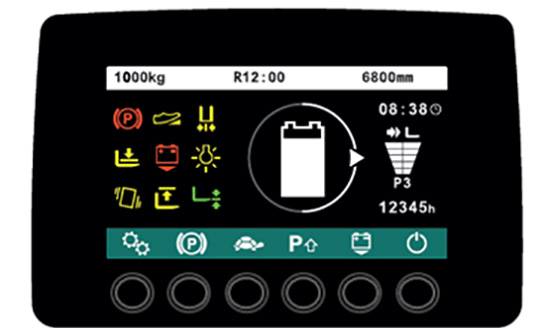

The easy-to-read operator display panel keeps the operator informed of key performance indicators, such as battery charge level and performance modes.
Total Cost Of Ownership
The LCD operator display provides immediate feedback to both operator and technician allowing for faster maintenance repairs.
Three performance modes can be modified to suit any application thereby optimizing the forklift for application efficiency.
Exclusive 5-Year Powertrain Warranty
Expect more from Jungheinrich, the experts in warehouse products, like a 5-year / 10,000 hour powertrain warranty that outperforms others. Available on all Jungheinrich Class I and II products sold across the United States, Canada and Mexico, the coverage includes parts and labor on all forklift components. Rest easier knowing that we’re here to help keep your fleet running – shift after shift – when you need it most.
Contact Our Specialists Today
Let us help you find the right solution to optimize your warehouse productivity.
| Model | Basic Capacity (lbls) | Max Fork Height | Voltage (or Fuel Type) | Length to Fork Face | Chassis Width (in) | Chassis Height (in) | Gross Weight (lbls) |
| ETV 318 | 3,900 | 453 | 48 | 51.4 | 50 | 86.2 | 7,765 |
| ETV 320 | 4,400 | 511 | 48 | 51.8 | 50.8 | 86.2 | 8,047 |
| ETV 325 | 5,500 | 511 | 48 | 55 | 53.1 | 86.2 | 8,157 |
| ETM 325 | 5,500 | 453 | 48 | 58.8 | 47.2 | 86.2 | 8,587 |
