TGX Series TGX20B-TGXE20B Product Spec Sheet - English
TGX Series TGX20B-TGXE20B Class III Tow Tractor
< Back
< Back
10,000 lb. Rolling Load Capacity Tow Tractor/Tugger
Ideal for indoor applications with confined spaces, the TGX electric tow tractor (also known as a tow tugger) can maneuver in even the most congested areas.
Whether it’s navigating tight aisles, handling heavy, uneven loads or traveling to and from the dock, UniCarriers tuggers put you and your operators in control. From the ergonomic design of the steerhead to the size and comfort of the platform, our trucks have been engineered to put your operators in comfortable command.
Our AC Motor Does More For Less
Greater torque and faster speeds are only the beginning of what our proven 5.2 HP brushless AC drive motor delivers. This 24V system features an advanced motor controller/AC inverter that distributes consistent power as needed to the AC drive motor or the heavy-duty DC pump motor of the tow tractor. The result? Consistently high performance across the battery range, with longer run times between charging.
Protection of Key Components
Unique steer race and enclosed frame design help keep major components protected — including drive motor, controller, and hydraulic system — resulting in less maintenance and longer life.
Keep Your Business Rolling
Heavy duty, yet simple caster design is well protected within the confines of the frame, but allows easy access greasing during maintenance.
Control Freak

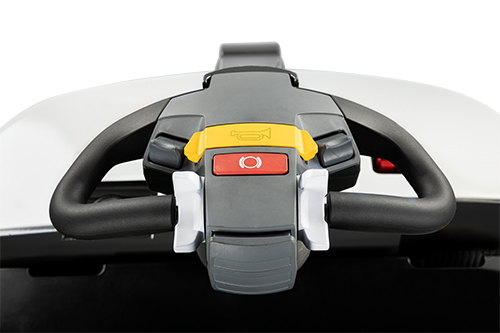

Requiring significantly less effort versus twist grip controls, our thumb-operated rotary controls allow the operator to easily adjust travel and direction from either side of the electric tow tractor.
| Model | Basic Capacity (lbls) | Max Fork Height | Voltage (or Fuel Type) | Length to Fork Face | Chassis Width (in) | Chassis Height (in) | Gross Weight (lbls) |
| TGX20B | 10,000 | 0 | 24 | 0 | 35.1 | 55.7 | 1,195 |
| TGXE20B | 10,000 | 0 | 24 | 0 | 35.1 | 55.7 | 1,270 |
