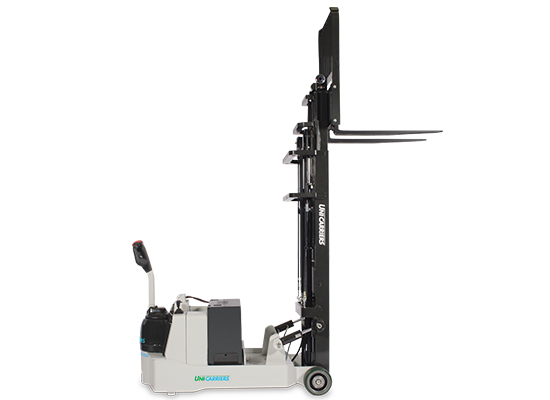

WCX30-WCX40

3,000 - 4,000 lb. Capacity Electric Walkie Counterbalanced Stackers

The WCX30-WCX40 counterbalanced stackers offer precise control when traveling at any speed and when retrieving or putting away loads.

The 3,000-4,000 lb. capacity WCX walkie counterbalanced stackers are workhorses built to handle heavier loads, reach higher heights and do the job of larger, more expensive trucks.

Our AC Motor Does More for Less

Greater torque and faster speeds are only the beginning of what our proven 5.2 HP brushless AC drive motor delivers. This 24V system features an advanced motor controller/AC inverter that distributes consistent power as needed to the AC drive motor or the heavy-duty DC pump motor.  The result? Consistently high performance across the battery range, with longer run times between charging.

Reach Higher

At 217 inches (18 feet), the WCX series walkie forklifts' lift height is among the highest in the industry — sized just right for two and three shelf racking. The flat face mast design features rolled steel channels, large cross sections, and thick inner rails for increased capacity retention.

A Turn for the Better

With the WCX30-WCX40 counterbalance pallet stackers you get the exceptional stability that comes from the wide wheelbase and tight turning radius.  Its 190º steering arc, ball-bearing steering mechanism, large steering control head, and spring-loaded handle all contribute to easily navigating in the tightest of spaces.

Smart Electric Brake

Regenerative motor torque, proportional plugging and our spring-applied electronically released disc brake work together to reduce component wear, extend part life and eliminate the need for adjustments.

brake-cutaway550x400

Model Basic Capacity (lbls) Max Fork Height Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in) Gross Weight (lbls)
WCX30 3,000 152 24 78.3 32.4 48 6,185
WCX40 4,000 152 24 78.3 32.4 48 6,185

WCX Series WCX30-WCX40 Product Brochure - English

WCX Series WCX30-WCX40 Class III Walkie Counterbalanced Stacker

WCX Series WCX30-WCX40 Product Spec Sheet - English

WCX Series WCX30-WCX40 Class III Walkie Counterbalanced Stacker
