8,000 - 12,000 lb. Capacity Internal Combustion Pneumatic Tire Lift Trucks

Designed to operate in tough environments, the PF(D)80-PF(D)120 dual fuel gas and diesel series forklifts have a lift capacity of 8,000 – 12,000 lbs. and are equipped with a powerful IC engine and durable mast – delivering the rugged performance you need to get the job done.

Designed to operate in tough environments, the PF(D)80-PF(D)120 series of lift trucks excel in heavy-duty applications for your specific needs. Built with powerful, legendary engines and durable masts, they deliver high performance, increased fuel efficiency, and lower overall emissions, while operating with low noise levels and low vibration. (diesel models are only available for order in US/Canada)

Excellent Uptime

Easy Access

  • Service access of this truck is easily accessible without tools. This includes a rear hinged engine cover, removable floor plate, radiator cover, and steel side covers.

Oil Maintenance Intervals

  • Improved 800-hour engine oil maintenance intervals which means less money spent on maintenance and less downtime for the truck.

Engine Protection System

  • Display-based indicators immediately notify the operator when vital fluids are low or engine maintenance is required, resulting in greater uptime while helping to prevent more costly maintenance.



excellent-uptime-550x400

Exceptional Service Access

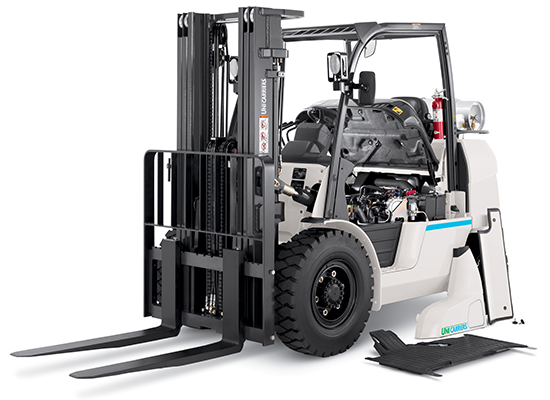

Whether major components or daily fluid checks, the rear hinged engine hood provides a high level of access to everything under the hood. When the engine hood is opened, the floor plate and side panels can be easily removed without the use of tools to provide better service accessibility.

Atlas-Up-Your-Uptime

Control Freak

Increased productivity and operator awareness is obtained through a variety of options including fingertip hydraulic controls.

Powerful acceleration maximizes productivity in a controlled manner using a powershift transmission. The two-speed forward and one-speed reverse transmission helps the operator remain in control.

Increased power on demand is available through the torque converter. Power is smoothly transferred from the engine to the transmission.

Atlas-Control-Freak

Power & Performance

Engine Protection System

Continuously monitors critical fluid levels and temperatures to protect the forklift. In the event that there is an excessive increase in heat or reduction in oil pressure, truck travel and hydraulic functions are reduced in stages. This safeguard can result in extended engine and drive train life.

  • The LP GK45 is a Powerhouse
    Powerful and highly efficient, our GK45 engine offers advanced features to drive performance and deliver rock solid reliability. Featuring electronic fuel injection and an engine control system that monitors key engine functions to deliver fuel economy and reduced emissions levels.
  • The D04EG-T Diesel
    Higher Power/Lower Emissions
    The inline 4-cylinder, turbocharged diesel engine features common rail injection, cooled exhaust gas recirculation, and a simplified emissions aftertreatment system to meet and exceed EPA tier 4 final emissions standards. It offers exceptional torque at low RPM levels to provide the power your application demands.

Atlas-Engine-Power-Performance

Model Basic Capacity (lbls) Max Fork Height Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in) Gross Weight (lbls)
PF80N 8,000 132 dual fuel: gasoline / LP gas 118 55.5 90.5 12,900
PF90N 9,000 132 dual fuel: gasoline / LP gas 123 57.5 90.5 13,800
PF100N 10,000 132 dual fuel: gasoline / LP gas 125 57.5 90.5 14,950
PF110N 11,000 132.5 dual fuel: gasoline / LP gas 130 57.5 90.5 15,950
PF120N 12,000 132.5 dual fuel: gasoline / LP gas 132 57.5 90.5 16,700
PFD80N 8,000 132 Diesel 118 55.5 90.5 13,100
PFD90N 9,000 132 Diesel 123 57.5 90.5 14,050
PFD100N 10,000 132 Diesel 125 57.5 90.5 15,150
PFD110N 11,000 132.5 Diesel 130 57.5 90.5 16,150
PFD120N 12,000 132.5 Diesel 132 57.5 90.5 16,900

PF(D)80N-PF(D)120N Series Product Brochure - English

PF(D)80N-PF(D)120N Class V Pneumatic Dual Fuel/Diesel IC Forklift
