4,500 / 6,000 lb. Capacity Electric Walkie Pallet Trucks
The EJE 120/225 electric walkie pallet trucks, along with the new EJE 120i, are specifically suited for loading and unloading trailers as well as transporting loads over short and medium distances. The EJE 120i, with its compact design and fully optimized lithium-ion battery technology, offers enhanced maneuverability in confined spaces.
Introducing the newest addition to our EJE walkie line, the EJE120i—a powerful extension of the Powerline Truck Series. Featuring a fully integrated battery component, the EJE120i's compact design and reduced turning radius make it perfect for loading and unloading trailers in even the most confined warehouse spaces. With a robust 4,500 lb. capacity and enhanced energy-efficiency technology, the EJE120i is ideal for high-volume distribution, ramp loading, and transporting heavy loads in any warehouse application from across your operation floor to across the country.

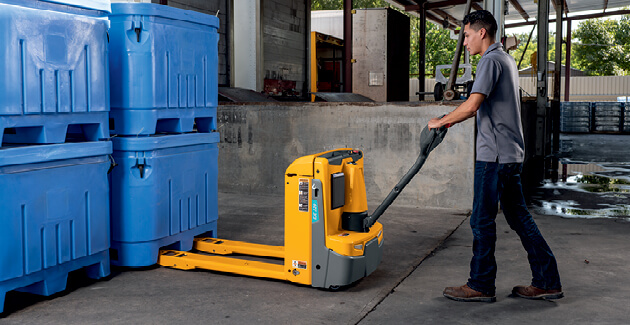

Energy Efficiency
Optimized Lithium-Ion EJE 120i model is now available, offering fast charging times, no maintenance and a reduction in overall costs. Optimized Li-ion battery technology allows for extremely short machine head-length for exceptional maneuverability.
Equipped with an advanced AC motor with low energy consumption and regenerative braking, which recovers energy from plugging, braking and coasting and directs it back to the battery.
EJE 120/225 are equipped with optional 30 amp integrated battery charger for maximum convenience.
With the Auto Shut-Off function, the truck shuts down after 5 minutes of non-usage to further conserve energy.

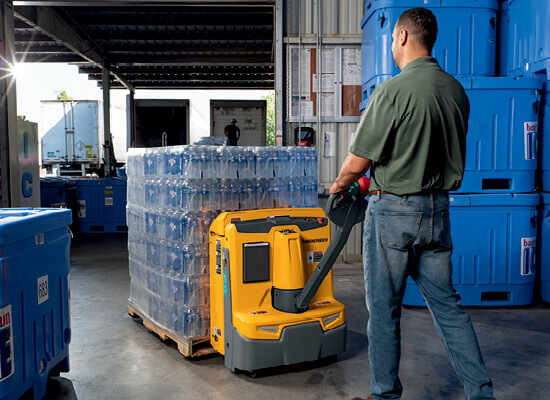

Productivity
The Jungheinrich® 3-phase AC motor and high-output AC controller allow these walkie pallet trucks to deliver quick acceleration and smooth directional changes.
Superior stability of both truck and load with optional ProTracLink stability casters.
Easy operation with the handle in the vertical position using the Crawl Speed button simplifies movement inside trailers and in confined spaces.
Simple pallet entry options supported by beveled fork tips to a 3º angle.
Optional cross-pallet entry supported by standard fork marks.
Fork tip wells for better visual while entering pallets.

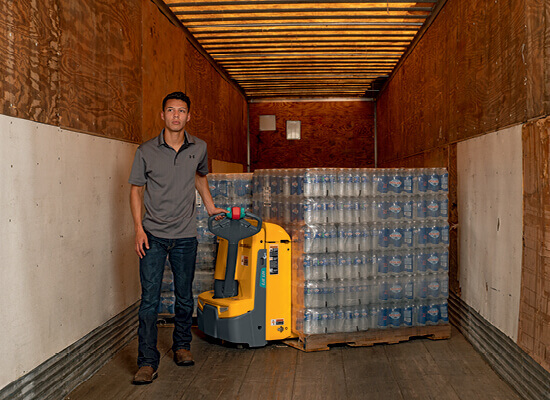

Awareness
"Smart" auto reverse button only operates when the truck is moving chassis first toward the operator.
Optional ProTracLink stability casters help protect fragile loads from tipping during tight turns.
Ramp rollback protection protects against unintended movements while operating on grades.

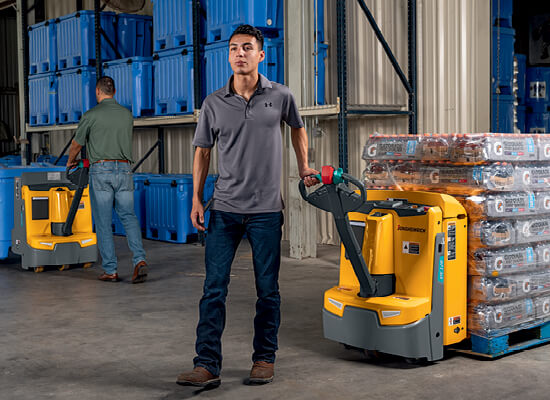

Ergonomics
Unique lift/lower rocker switches allow operation with the handle in virtually any position.
Low-mounted tiller arm provides easier steer effort and keeps the operator a secure distance from the chassis.
"Smart" auto reverse button boosts operator confidence by protecting them against unintended contact.
Required steering forces reduced by 15.3%.

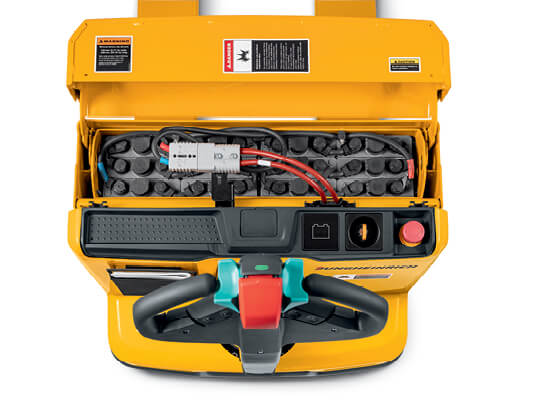

Total Cost Of Ownership
These electric walkie pallet trucks have AC motors with no wearable components, like carbon brushes or contactors, to replace over time.
Sealed electrical components mean that dust and moisture cannot impact the truck’s performance.
Rolled steel provides flexibility and durability to withstand tough applications over time.
Automatic lift-cutout helps avoid burnout by cutting off the hydraulic motor when the forks reach max height.
Contact Our Specialists Today
Let us help you find the right solution to optimize your warehouse productivity.
| Model | Basic Capacity (lbls) | Max Fork Height | Voltage (or Fuel Type) | Length to Fork Face | Chassis Width (in) | Chassis Height (in) | Gross Weight (lbls) |
| EJE 120 (short compartment) | 4,500 | 4.8 | 24 | 19.1 | 28.3 | 29.5/48.7 | 926 |
| EJE 120 (medium compartment) | 4,500 | 4.8 | 24 | 22.8 | 28.7 | 29.5/48.7 | 941 |
| EJE 225 (medium compartment) | 6,000 | 4.8 | 24 | 24 | 28.7 | 29.5/48.7 | 1,193 |
| EJE 120i | 4,500 | 4.8 | 24 | 18.7 | 28.3 | 48.6/55.9 | 933 |
| EJE 120i (compact) | 4,500 | 4.8 | 24 | 16.7 | 28.3 | 27.2/55.9 | 882 |
