Product Spec Sheet - English
ETV Q20/Q25 Moving Mast Reach Trucks
< Back
< Back
4,400; 5,500 lb. Capacity Moving Mast Electric Reach Trucks
The ETV Q20 / Q25 series of multi-directional electric reach trucks can travel in any direction through electronically controlled all-wheel steering.

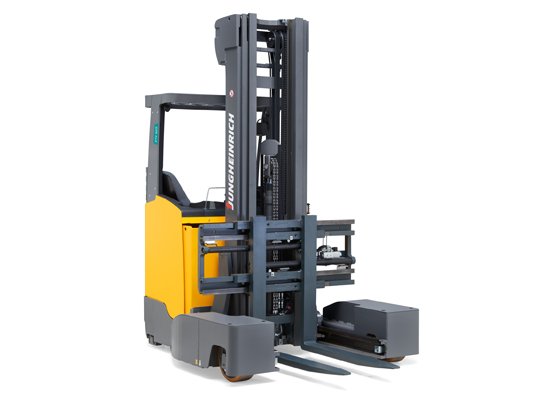

These 4,400-5,500 lb. capacity multi-directional reach trucks can be used for efficient stacking and retrieval at high lift heights and for long loads that need to be transported in narrow aisles. With electric all-wheel steering, these trucks can transport loads up to 26.2 feet long, maximizing space in the warehouse. A true multi-directional reach truck, the ETV Q series truck has five travel programs available, ranging from modified standard travel to rotational travel and all-wheel parallel travel.Productivity
Three operator performance modes and enhanced steering mode provide greater flexibility when operating the reach truck.
On-the-fly directional mode changes for ease of operation.
Enhanced sideways and parallel travel programs designed for increased productivity.
Longer forklift operating times due to energy reclamation during braking.

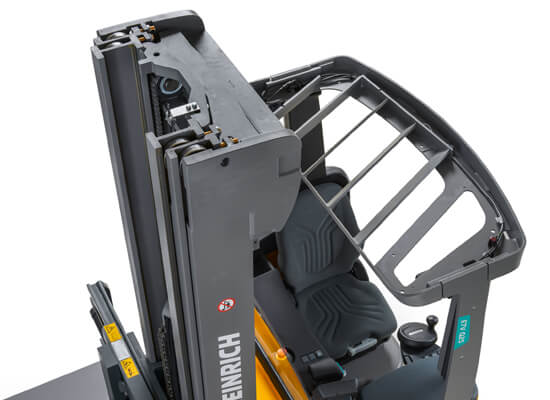

Awareness
Patented mast-reach cushioning, with travel speed automatically reduced to crawl speed if the load is raised above the free-lift height.
Jungheinrich® Curve Control for advanced stability during cornering.
Reach truck performance software can be adjusted to meet your specific drive and hydraulic performance needs or limits.

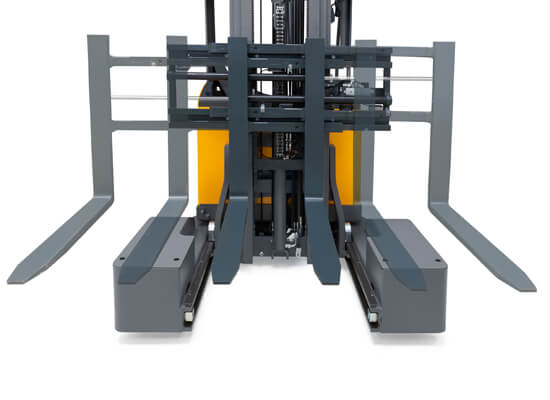

Energy Efficiency
Increase uptime due to Jungheinrich's innovative AC technology, which is built to reduce energy usage.
Shorter cable connections between compartments means faster forklift response times and less energy depletion.

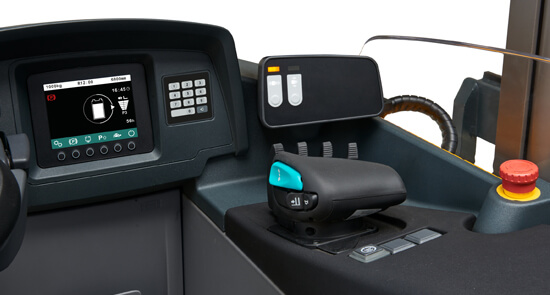

Ergonomics
The electric reach truck's spacious operator compartment combines comfort and functionality to improve operator efficiency.
- 3-way adjustable full-suspension seat for maximum operator comfort.
- Low-effort electric power steering for precise control with minimal effort.
- The easy-to-read operator display panel keeps the operator informed of key performance indicators, such as battery charge level, hour meter and performance modes.
- The sturdy mast and narrow, angled overhead guard promote good visibility to the load even in high stacking applications.

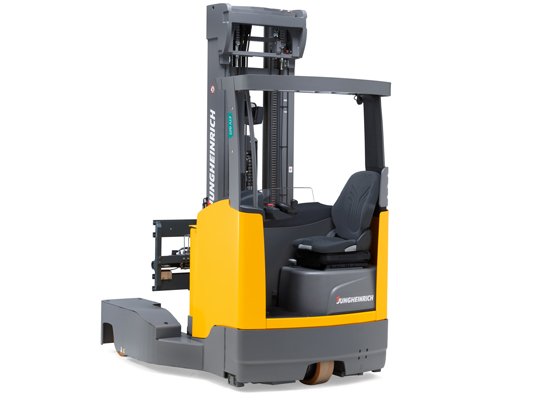

Total Cost Of Ownership
Travel and lift control electronics are encased in a sealed housing to help maximize component life.
Efficient, high performance motor minimizes energy consumption while maximizing productivity.
Exclusive 5-Year Powertrain Warranty
Expect more from Jungheinrich, the experts in warehouse products, like a 5-year / 10,000 hour powertrain warranty that outperforms others. Available on all Jungheinrich Class I and II products sold across the United States, Canada and Mexico, the coverage includes parts and labor on all forklift components. Rest easier knowing that we’re here to help keep your fleet running – shift after shift – when you need it most.
Contact Our Specialists Today
Let us help you find the right solution to optimize your warehouse productivity.
| Model | Basic Capacity (lbls) | Max Fork Height | Voltage (or Fuel Type) | Length to Fork Face | Chassis Width (in) | Chassis Height (in) | Gross Weight (lbls) |
| ETV Q20 | 4,400 | 421 | 48 | 50.7 | 69.7 | 86.2 | 8,157 |
| ETV Q25 | 5,500 | 421 | 48 | 53.6 | 69.7 | 86.2 | 8,157 |
