7,000 - 11,000 lb. Capacity Pneumatic Tire Electric Forklifts
The EFG 535k-S50 series provides a broad capacity range for enhanced flexibility.
The 7,000-11,000 lb. capacity electric pneumatic tire lift trucks are equipped with the newest generation of Jungheinrich's 3-phase AC technology, which offers numerous advantages, such as high performance due to higher motor torque and energy efficiency. Major electrical components are sealed, including connectors, controllers, motors and more, preparing this series for even the toughest environments.

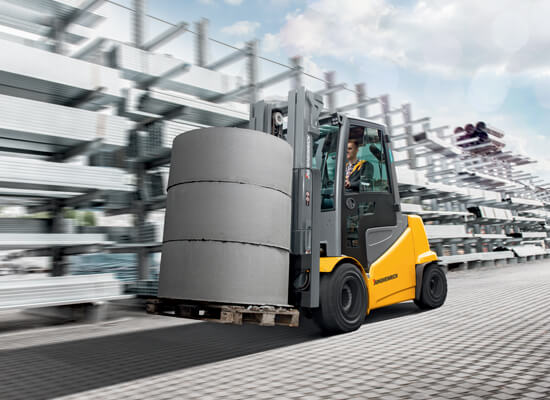

Productivity
AC electrical system produces high torque even at low speeds in addition to offering dynamic acceleration, precision positioning and controlled travel speed on ramps.
Fully-enclosed AC motors allow this electric forklift to operate in outdoor applications without sacrificing on performance.
SOLO-PILOT fingertip hydraulic controls come standard for precision operation.

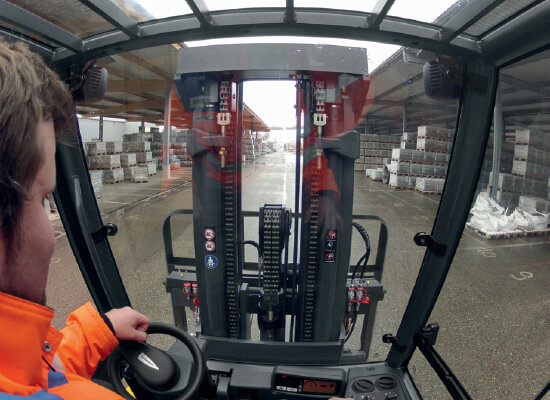

Awareness
Curve Control automatically reduces speed while turning corners, helping to ensure control over loads.

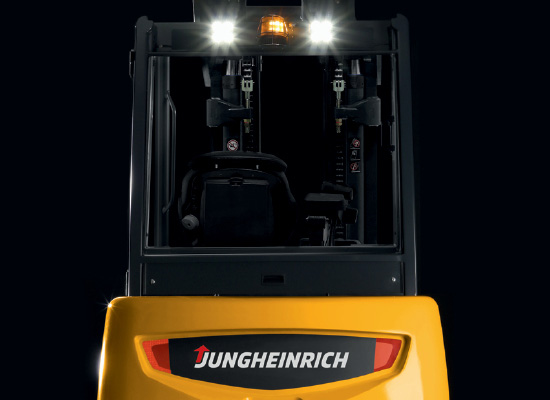

Multiple warning and light options increase awareness and visibility in the warehouse.
Orange seat belt helps increase awareness and easy visual verification.
Truck performance software can be adjusted to meet your specific drive and hydraulic performance needs or limits.
Energy Efficiency
Operates up to 2 shifts on 1 battery charge in most applications.
Compact electronic and hydraulic design allows for minimal power usage - running longer and with less energy consumed.
Regenerative braking with the traction motor allows for smooth, energy efficient deceleration, cycling energy back into the battery for longer runtimes and exceptional performance.
Ergonomics
Electronic hydraulic controls offer the highest level of operational ease.
SOLO-, MULTI- or DUO-PILOT hydraulic controls are available to match the operational preferences of operators to maximize their productivity.

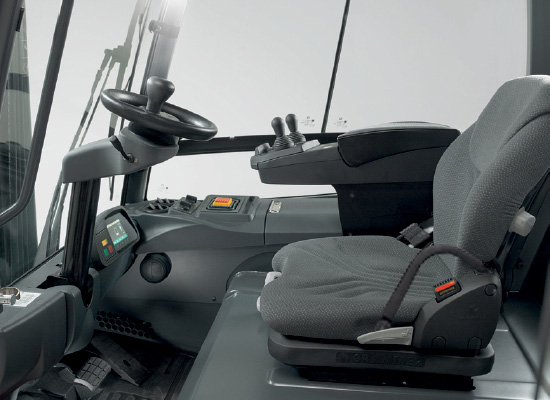

Full-suspension seat helps to cushion the operator from vibrations and bumps when traveling over uneven surfaces.
Electric power steering (optional on some models) allows the operator to maneuver the truck with very little effort.

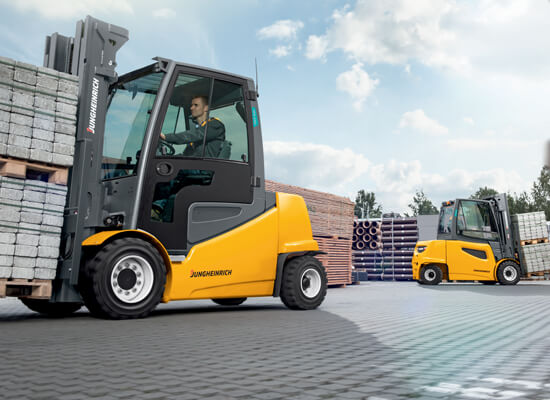

Total Cost Of Ownership
New generation of 3-phase AC motors on the EFG535k-S50 electric forklifts are designed for worry-free operation, without sacrificing on performance, precision or speed. Main components have lifetime lubrication; motor, brake and gears are integrated into the sealed drive axle.
Exclusive 5-Year Powertrain Warranty
Expect more from Jungheinrich, the experts in warehouse products, like a 5-year / 10,000 hour powertrain warranty that outperforms others. Available on all Jungheinrich Class I and II products sold across the United States, Canada and Mexico, the coverage includes parts and labor on all forklift components. Rest easier knowing that we’re here to help keep your fleet running – shift after shift – when you need it most.
Contact Our Specialists Today
Let us help you find the right solution to optimize your warehouse productivity.
| Model | Basic Capacity (lbls) | Max Fork Height | Voltage (or Fuel Type) | Length to Fork Face | Chassis Width (in) | Chassis Height (in) | Gross Weight (lbls) |
| EFG 535k | 7,000 | 255 | 80 | 105.4 | 52.8 | 93.1 | 12,853 |
| EFG 540k | 8,000 | 295 | 80 | 105 | 52.8 | 93.1 | 14,828 |
| EFG 540 | 8,000 | 295 | 80 | 110.7 | 52.8 | 93.1 | 14,773 |
| EFG S40 | 8,500 | 275 | 80 | 116.2 | 57 | 92.5 | 15,820 |
| EFG 545k | 9,000 | 295 | 80 | 105 | 57 | 92.5 | 15,842 |
| EFG 545 | 9,000 | 295 | 80 | 110.7 | 57 | 92.5 | 15,787 |
| EFG 550 | 10,000 | 275 | 80 | 110.7 | 57 | 92.5 | 16,643 |
| EFG S50 | 11,000 | 254 | 80 | 116.2 | 57 | 92.5 | 17,716 |
